JVC CS-DR520 13cm (5-1/4") 2-Way Coaxial Speakers

In stock
SKU
JVC CS-DR520 13cm (5-1/4") 2-Way Coaxial Speakers
Views: 1
$59.00

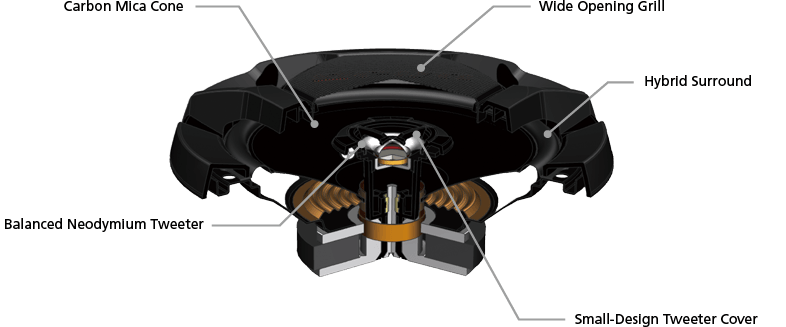

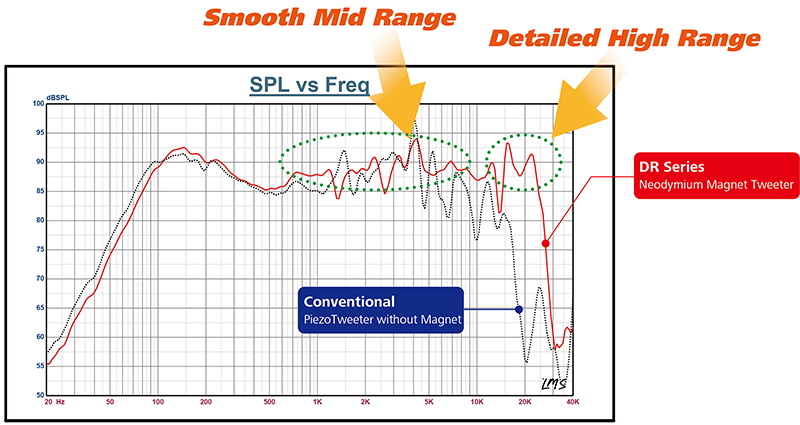

Balanced Neodymim Tweeter

It provides detailed high range and smooth mid range.

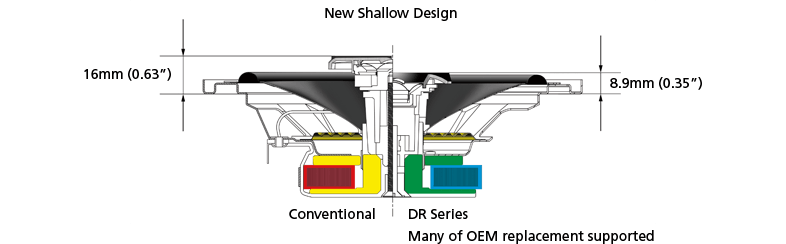

Great Factory Replacement

Installable vehicle types are greatly increased thanks to its shorter height.

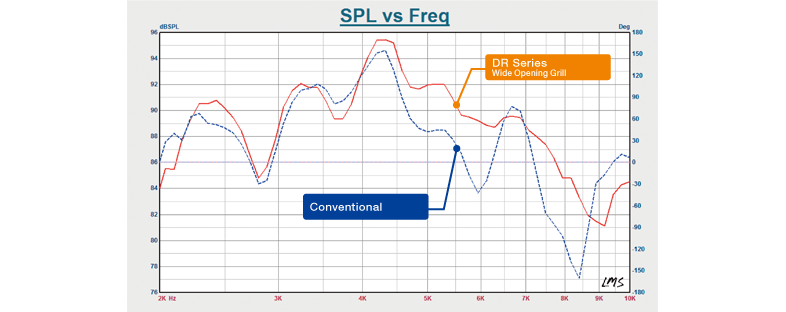

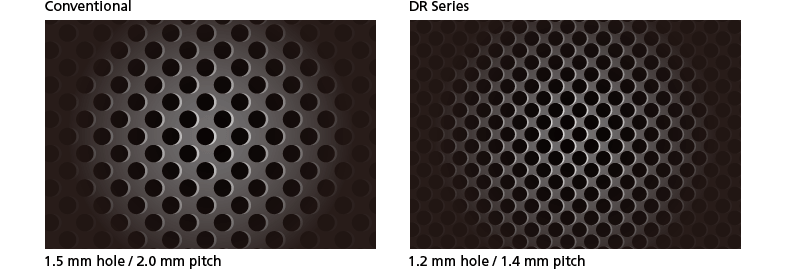

Wide Opening Grill

Grill’s opening ratio is 30% wider than the conventional model, enabling increased durability and clear sound.

Carbon Mica Cone

Robust and lightweight carbon mica material provides highly responsive, clear and undistorted reproduction.

Hybrid Surround

Rubber Coated Cloth with increased mobility enables high efficiency and improved follow-up to audio signals.

Small Design Tweeter Cover

Newly developed small cover significantly reduces areas that interfere with the woofer cone. High-quality sound is assured.

CS-DR520

        Size                       13 cm (5-1/4'')
Diaphragm Carbon Mica Cone
Surround Hybrid Surround (Rubber & Cloth)
Magnet Ferrite
Size 2.5 cm (1'')
Type Balanced
Diaphragm
Poly-Ether Imide
Magnet Neodimium
Frequency Response 85 - 25,000Hz
Power Handling Capacity (RMS)
40W
Power Handling Capacity (Peak Power) 260W
Impedance 4 ohms
Sound Pressure Level 88dB
Weight (w.Grille) 0.51kg (1.2lbs)
Weight (w/o Grille) 0.46kg (1.1lbs)
Magnet Mass 153g (5.4oz)
Mounting Depth 44.5 mm (1-25/32")
