JVC KS-DR3001D Mono Class D Amplifier

In stock
SKU
JVC KS-DR3001D Mono Class D Amplifier
Views: 1
$229.00

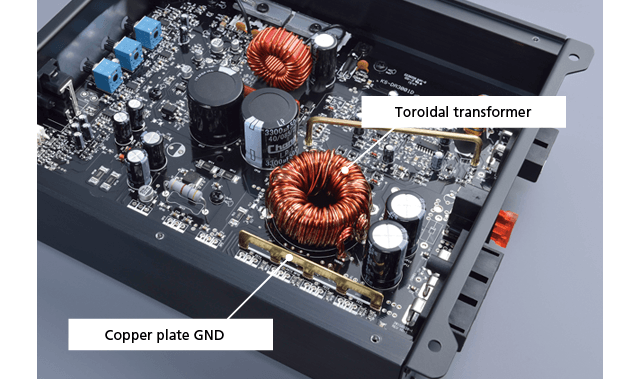

Toroidal Transformer

Stable power supply is assured thanks to a large-size toroidal transformer. Its high winding density and low flux leakage improves conversion efficiency of the power. The result is natural and powerful music playback throughout the volume range.

Enhanced GND

Offers a copper plate for the ground. Its low resistance value reduces loss of voltage to deliver clear sound with less distortion.

Speaker-level Inputs for Easy Installation

DR Series amplifiers feature speaker level inputs with Auto Turn-on function. Installation is possible without having to detach the head unit.

KS-DR3001D

            Maximum Power Output                800W
RMS Power Output (4 ohm) [ 1% THD 14.4V] 250W x 1 (20 - 200Hz)
RMS Power Output (2 ohm) [ 1% THD 14.4V] 400W x 1 (20 - 200Hz)
Class Class-D
Frequency Response (+0, -3dB)
20 - 200Hz
Total Hamonic Distortion < 0.08%
Signal-to-Noise Ratio (reference: 1W into 4 ohms), CEA-2006 Compliant > 60dB
Load Impedance Allowance 2 - 8 ohms
LPF 50 - 200H (18dB)
Subsonic Filter 20Hz Fix
RCA Input
L/R
High Level Input (Speaker Level Input) Yes
High Level Input Auto Power Control (Signal Sensing Turn On) Yes
Input Sensitivity 0.2 - 15V
Bass Boost Control at 45Hz Variable (0-18dB)
Protection Circuitry (Thermal / Short Circuit / Overload / DC Offset) Yes
Anti-Pop Circuit Yes
Dimensions (W x H x D) 227 x 52 x 185
