JVC KW-M560BT Android Auto / Apple Carplay / Bluetooth / USB / AUX

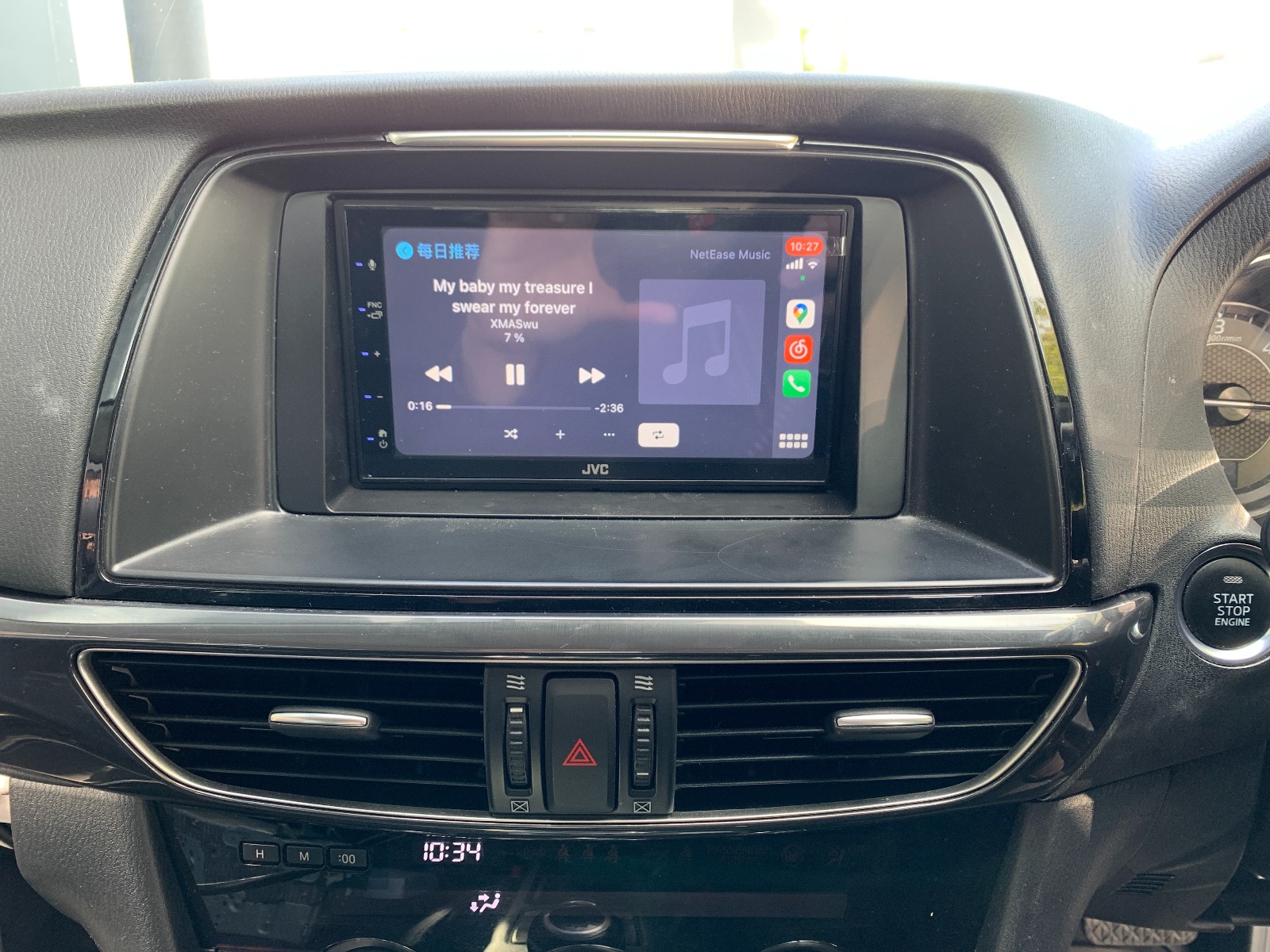

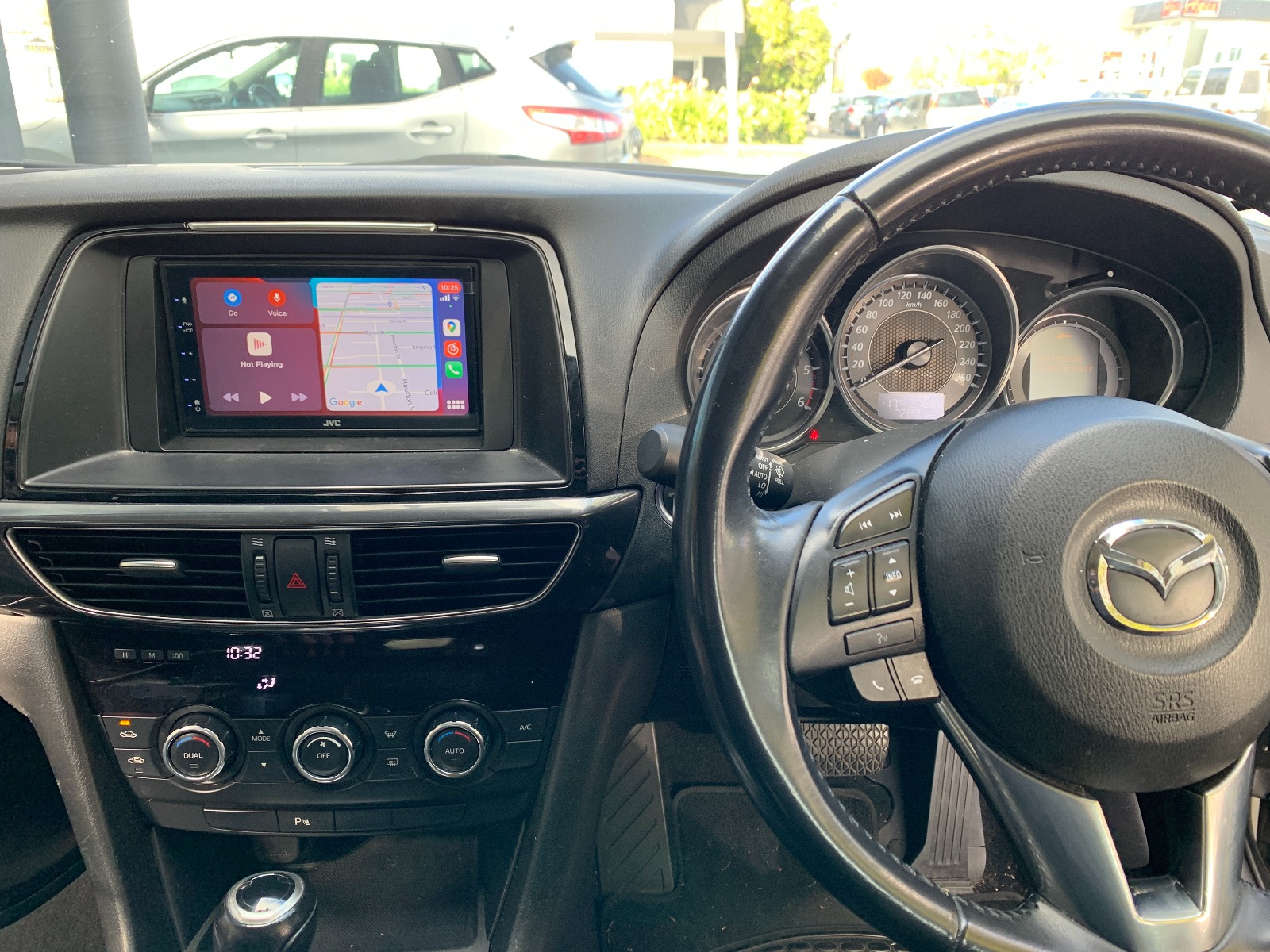

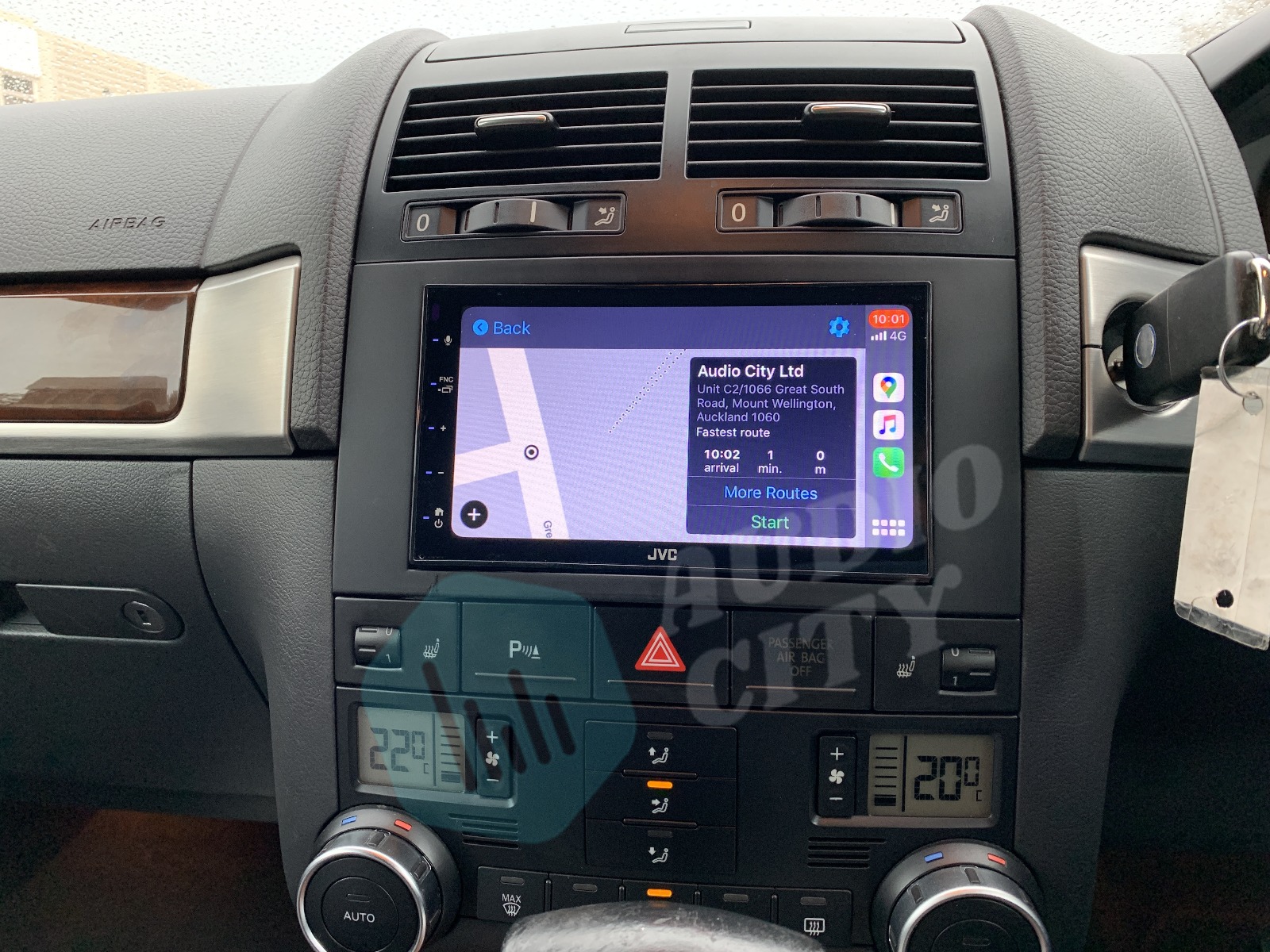

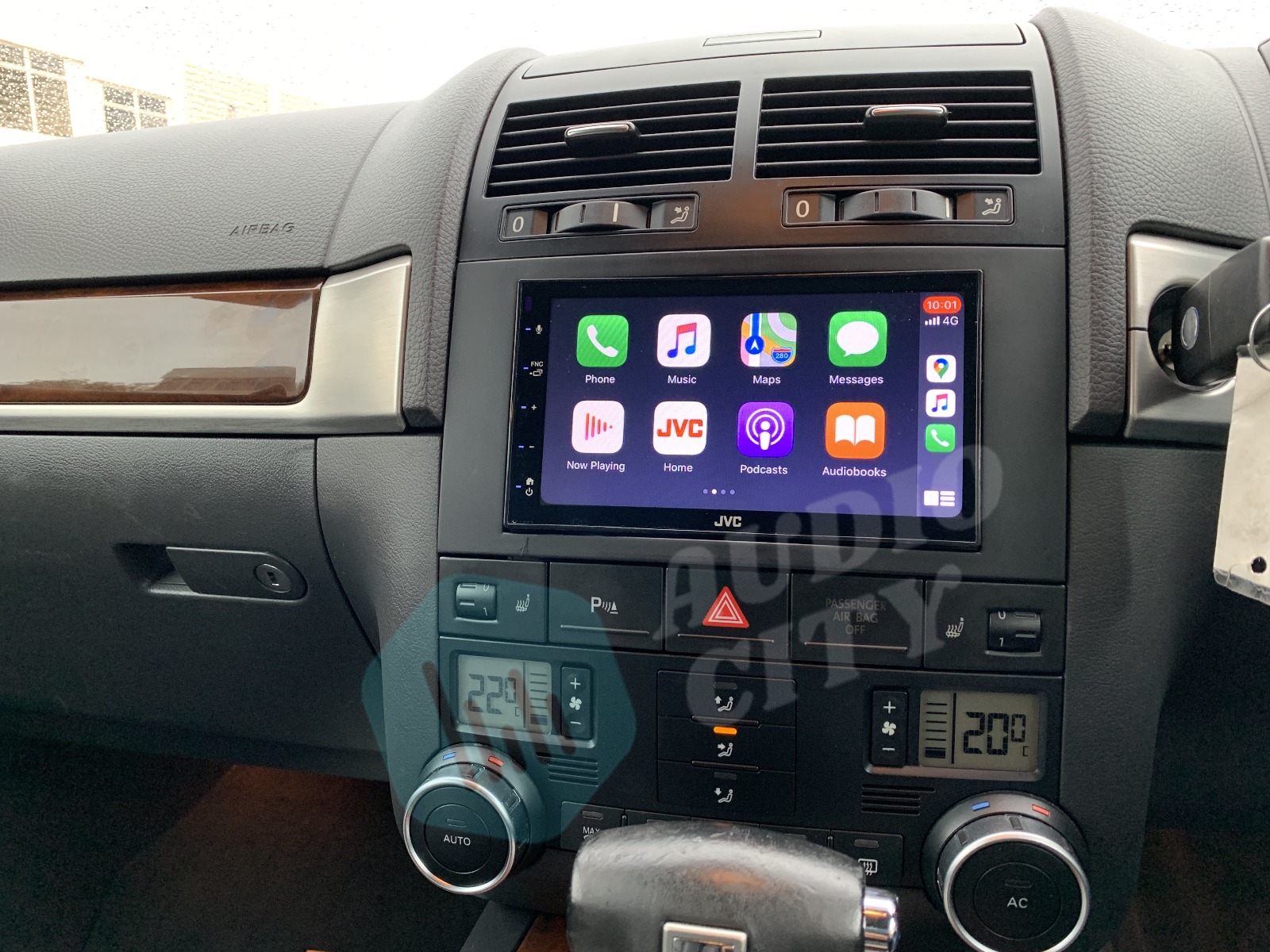

Apple CarPlay™ – Connect via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch. With the latest iOS version (iOS 13.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are supported.

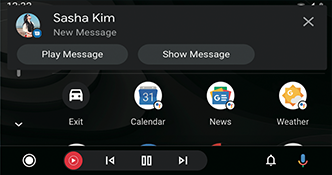

Android Auto™ – Connect via USB
Android Auto was designed with safety in mind. With a simple and intuitive interface and powerful voice actions, it’s designed to minimize distraction so that you can stay focused on the road.

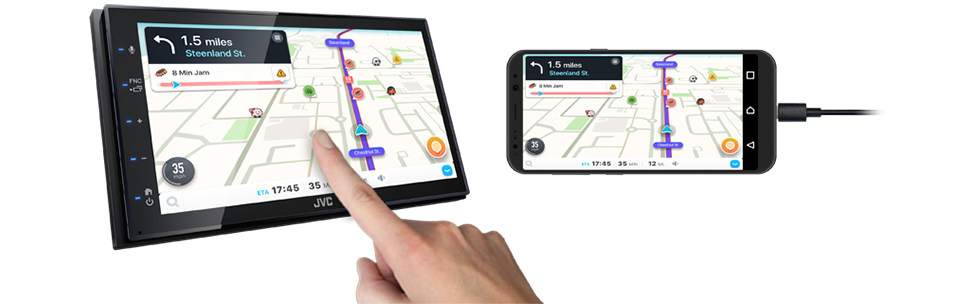

Mirroring for Android Phone –
Connect via USB
By installing the “Mirroring OA for JVC” app, your Android phone is seamlessly displayed on the receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

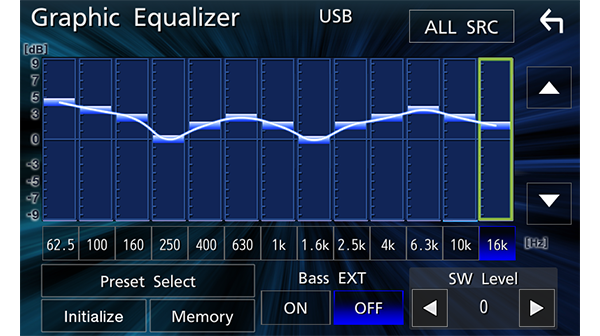

Use the 13-Band Equalizer to manually adjust the sound to your taste.
Bluetooth® Wireless Technology
Android™ Bluetooth Automatic Pairing
Just connect your Android device via USB and the automatic Bluetooth pairing function will work to complete the pairing. No complicated manual procedure to worry about.

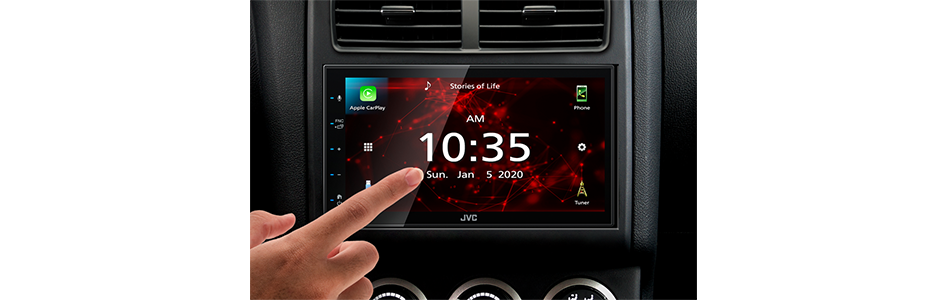

The Capacitive touch screen provides high clarity and uses a superior touch control, requiring lighter contact with greater accuracy.
Gesture Touch Control
Just touch and move your finger over the screen for various operations corresponding to your finger movements. Intuitive control provides safer operation for in-car entertainment.

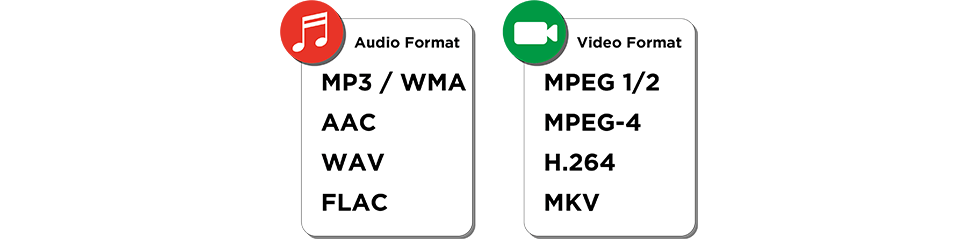

Various Formats Compatible
Supports a variety of file formats for audio and video playback.
High Current 1.5A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A.
*Compatibility depends on the smartphone.
The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.
|Screen Size||6.8"W VGA Screen|
|Monitor Touch Control||Yes|
|MP3 Compatible with Tag||USB|

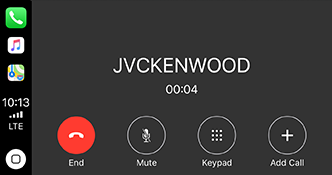

|Hands Free Call||Yes|
|Android Auto||Yes (via USB)|
|Mirroring for Android||Yes (via USB) *Need mirroring App|
|Android Music Playback||Yes (via Bluetooth(R))|
|CarPlay||Yes (via USB)|
|USB Port||x 1 (High Speed)|
|USB Power Supply||Yes (1.5A High Current Charging)|
|FM Frequency Range||87.5-108.0MHz|
|AM Frequency Response||531-1,611kHz|
|Maximum Power Output (Front & Rear)||50Wx4|
|AV Input||mini jack (AV-IN or Camera switchable)|
|Subwoofer Output with Level/Frequency Control||Yes|
|Back Up Memory||Yes|
|Steering Remote Control Ready||Yes|
|Learning Direct OEM Remote||Yes|
|Installation Size||178 x 100 x 75 (mm)|
|Unit weight in individual package||1.8kg|
|Radio Data System||Yes|
|Functions||Bluetooth, Apple Carplay, Android Auto, 2 DIN Size|
|Installation Services||Installation Fees||Time (Roughly)|
|Basic 2 DIN Head Unit||From $99 incl||1 Hour|
|Basic 1 DIN Head Unit||From $60 incl||40 Mins|
|Basic Pair Speakers||From $80 incl||40 Mins|
|Component speakers||From $120 incl||1 Hour|
|Basic Car Alarm||From $150 incl||2 Hours|
|Basic Rear Parking Sensors||From $180 incl||2 Hours|
|Eurpean Car Conversions||Fees||Time (Roughly)|
|Radio Update to NZ FM||From $99 incl||30 Mins (Mercedes might be longer)|
|NZ GPS Nav Update to NZ Latest Map||From $99 incl||1 Hour (Some models might be longer)|
|Japan GPS Nav Update to NZ Latest Map||From $299 incl||1 Hour (Some models might be longer)|
|Carplay/Android Auto Activation||From $149 incl||1 Hour (Some models might be longer)|
