Why Some Mazda Reversing Cameras Flicker or Malfunction
Many Mazda vehicles — especially models like the Demio, Axela, and CX-3 — frequently experience issues with factory reversing cameras, such as screen flickering, blackouts, or microphone failure.
One of the most common root causes is a loose connection on the factory head unit, which becomes worse with vibrations from driving or door slamming.

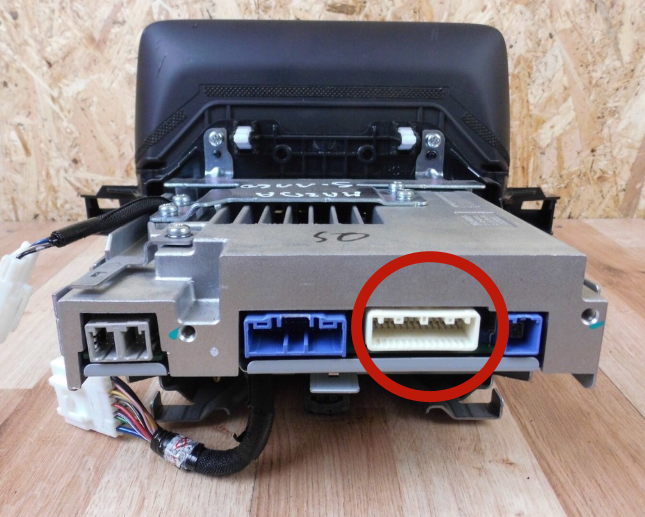

Root Cause: Loose Factory Head Unit Connectors
1：Weak Locking Mechanism on OEM Plugs
Mazda’s OEM infotainment systems from Japan often use plastic clip-style connectors.
Over time, these clips can weaken, deform, or may not fully lock during installation or repair.
This results in unstable or intermittent contact between the camera and the head unit.
2：Poor Contact on Camera Signal and Power Wires
The factory reverse camera is usually connected via small pin-type connectors without locking tabs.
These rely solely on friction and are prone to loosening from driving vibrations or shock from closing doors.
This can cause:
a:Flickering or black screen
b:Delay or no response when shifting into reverse
c:Signal loss, static noise, or snowy interference
Australia once issued a recall for certain Mazda vehicles due to issues with the factory head unit connectors
