JVC KW-M690BW Wireless CarPlay / Android Auto / Bluetooth / USB / Mirror Link

Available in Christchurch Only

SKU

JVC KW-M690BW

Special Price $578.00 Regular Price $899.00

Monitor with ReceiverKW-M690BW

Digital Media Receiver featuring 6.8" Capacitive Touch Monitor / Apple CarPlay (Wireless, Wired) / Android Auto™ (Wireless, Wired) / Wireless Mirroring / Bluetooth® / 13-Band EQ / Short Chassis

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

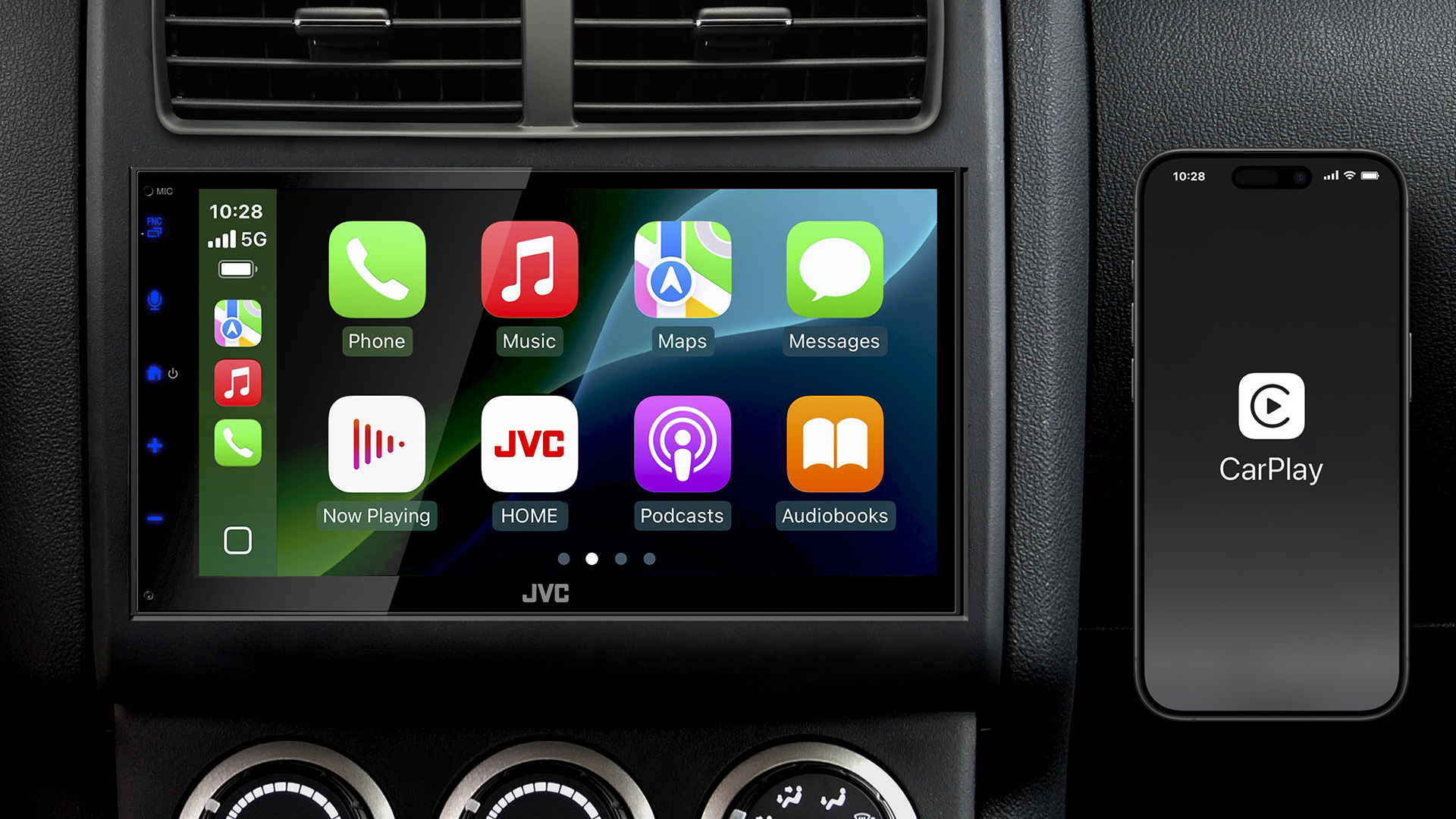

Apple CarPlay – Connect Wirelessly or via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

Some features, applications, and services are not available in all areas.

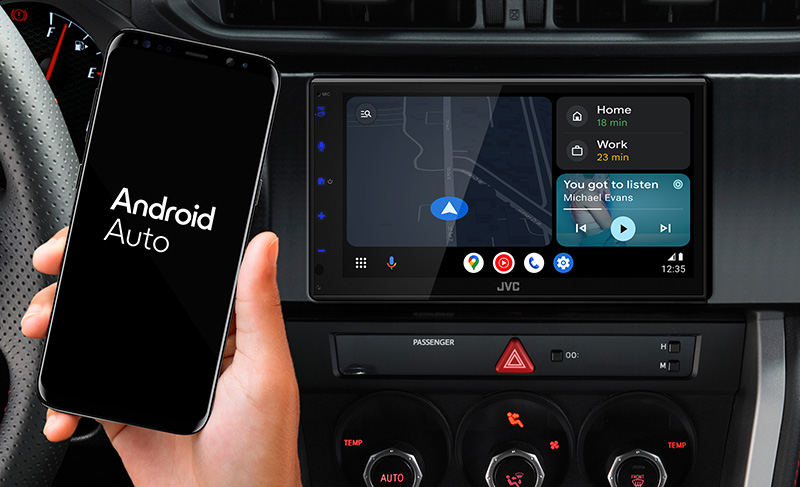

Android Auto™ – Connect Wirelessly or via USB

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.

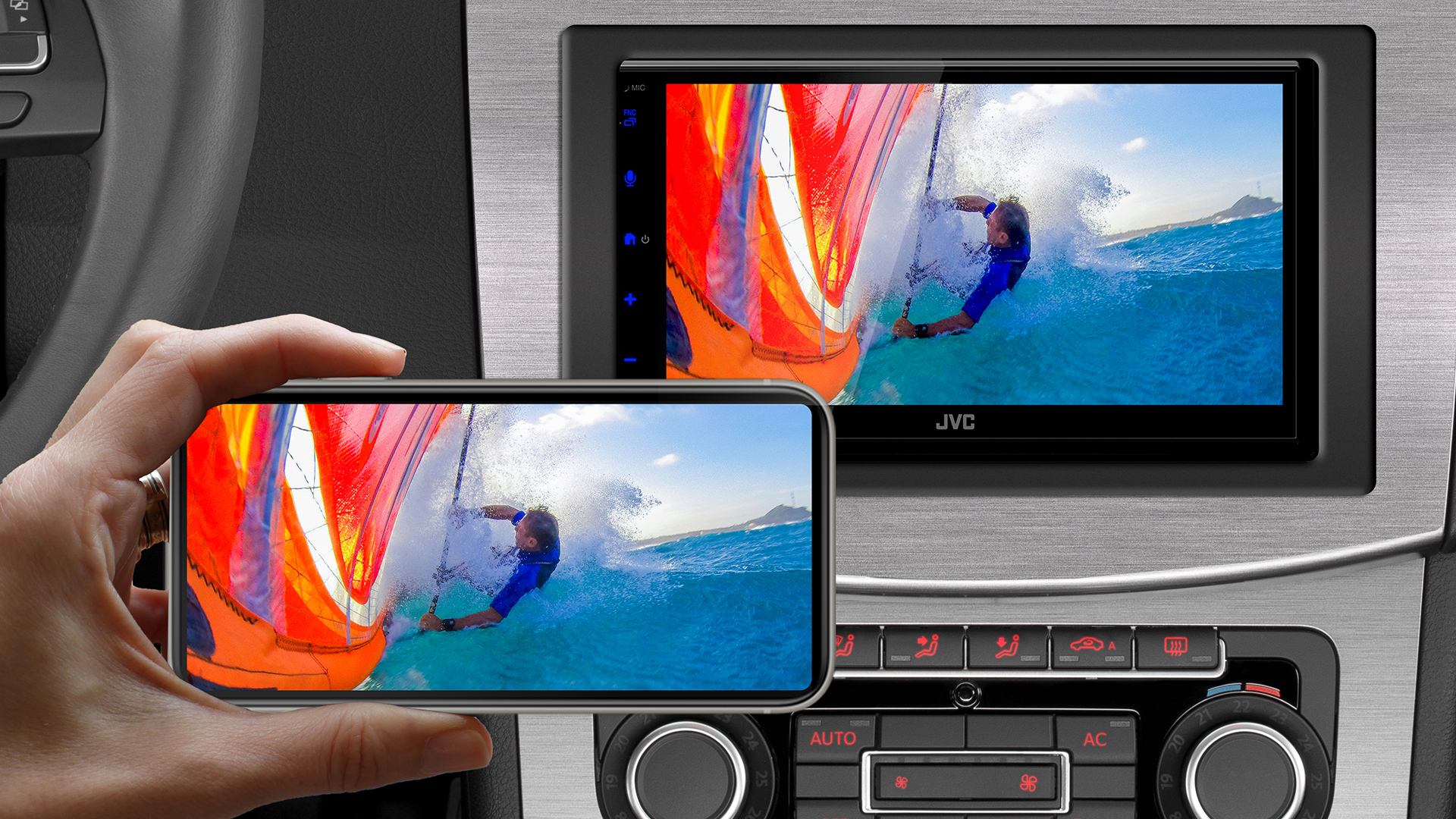

Wireless Mirroring

By installing the “MirrorApp+” app, your mobile phone is seamlessly displayed on the receiver's screen without cable. You can enjoy a variety of apps such as Waze, YouTube™, and Instagram. Touch control is possible from both screen and mobile phone.

*Selected mobile phones only

SOUND OPTIMIZATION

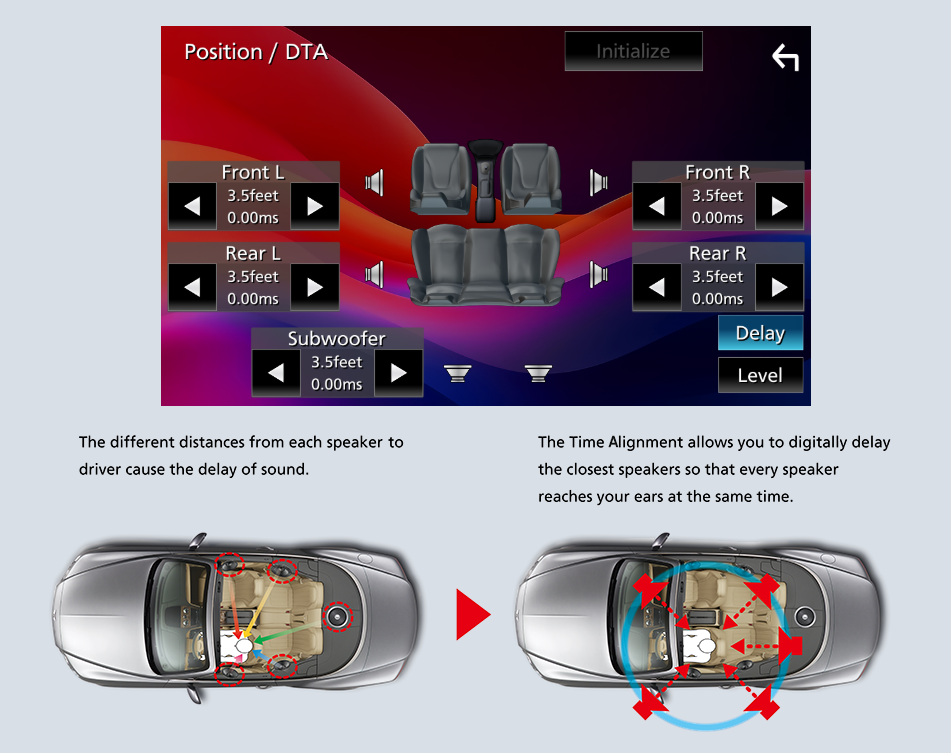

Time Alignment

By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

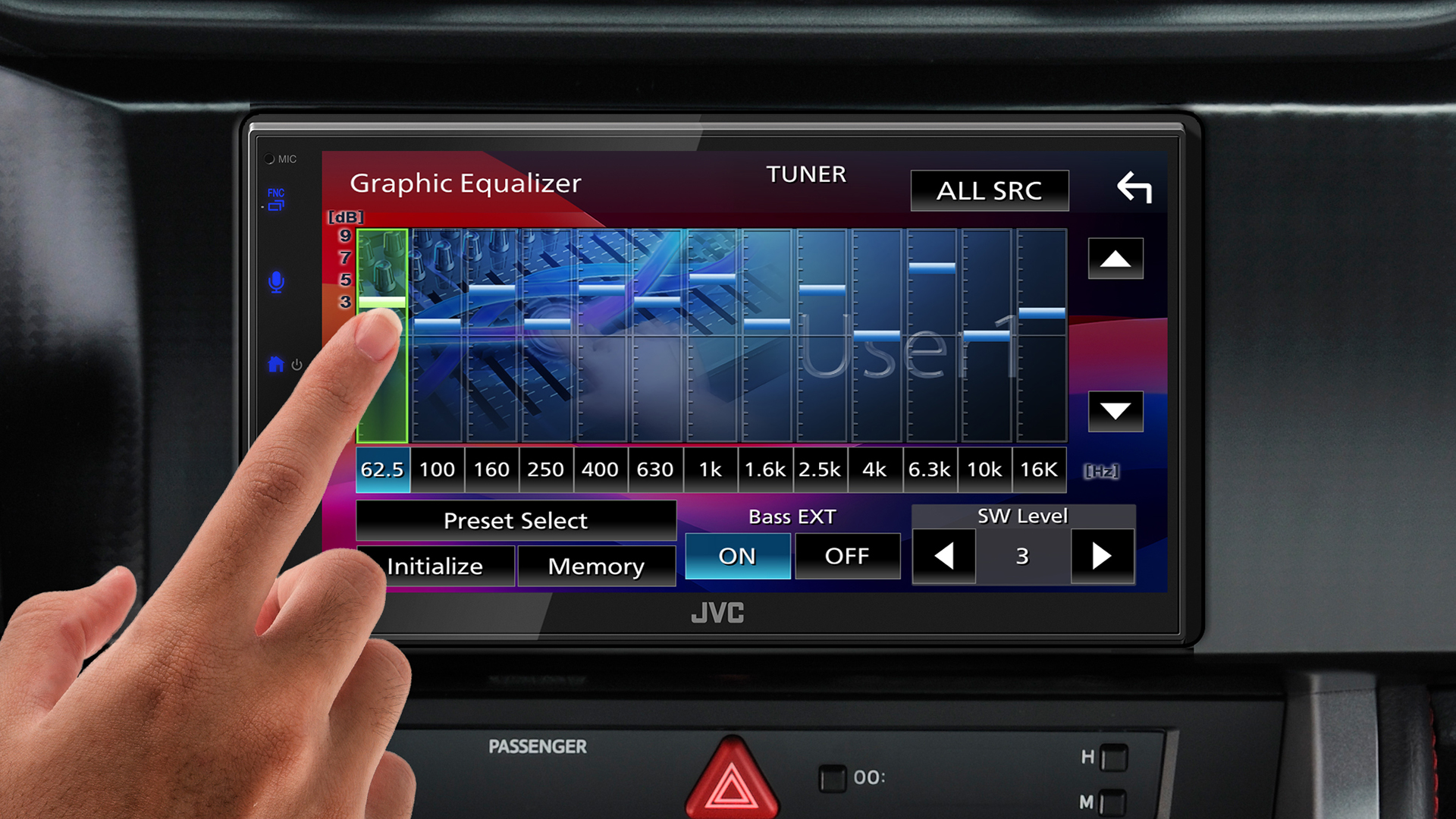

13-Band Equalizer

Use the 13-Band Equalizer to manually adjust the sound to your taste.

Bluetooth Voice Recognition

Improved Sound Quality with HFP 1.8

Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.

Bluetooth AVRCP1.6 for Versatile Song Selection

In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.

6.8" WSVGA LCD Display

The WSVGA display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.

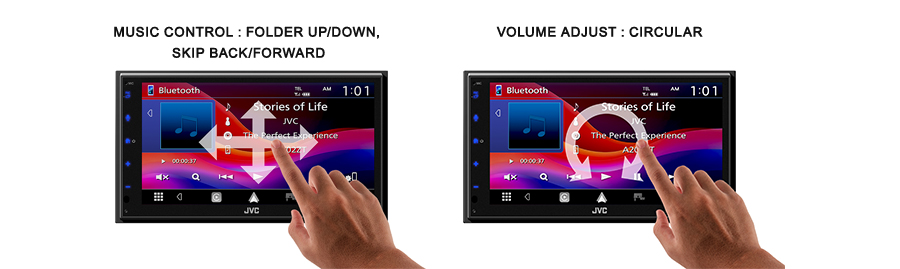

Gesture Touch Control

Just touch and move your finger over the screen for various operations corresponding to your finger-movements (for some sources, the Gesture Touch Control is not available). Intuitive control provides safer operation for in-car entertainment.

KW-M690BW

Monitor

Screen Size:6.8"W SVGA

Touch Panel:Capacitive

Key Illumination Color:Blue

Dimmer:Yes

Multilingual Display:Yes[

Media Playback

MP3 Compatible with Tag:USB

WMA Compatible with Tag:USB

WAV Compatible with Tag:USB

AAC Compatible with Tag:USB

FLAC Compatible with Tag:USB

H.264 Compatible:USB

WMV Compatible:USB

MPEG 1/2 Compatible:USB

MPEG 4 Compatible:USB

MKV Compatible:USB

Bluetooth Control

Built-in Bluetooth:Yes (Hands-Free MIC Built-in)

Hands Free Call:Yes (HFP1.7)

Audio Streaming & Control (A2DP, AVRCP):Yes

Supported Audio Formats:AAC / SBC

Voice Dialing (voice recognition compatible mobile phone required):Yes

Phone Book Access Profile (PBAP):Yes

Wi-Fi Control

Built-in Wi-Fi:Yes

Android Control

Android Auto[2]:Yes (via Wi-Fi or USB)

Mirroring for Android:Yes (via Wi-Fi) *Need mirroring App

iPod/iPhone Control

CarPlay:Yes (via Wi-Fi or USB)

Mirroring for iPhone:Yes (via Wi-Fi) *Need mirroring App

USB

USB Port:x 1 (High Speed)

Position:Rear

USB Power Supply:Yes (2.1A High Current Charging)

Radio Tuner

Radio Data System:Yes

Preset Stations:36(FM:24ch, AM:12ch)

Auto Memory Entry:Yes

FM

Frequency Range: 87.5-108.0MHz:AM

Frequency Response:531-1,611kHz

Audio

Maximum Power Output (Front & Rear):50Wx4

Full Bandwidth Power (Front & Rear):22W x 4

EQ:Yes (13-Band Graphic EQ)

Preset EQ:Yes (7Preset + 3user)

Bass Boost:Yes

High-Pass Filter/Low-Pass Filter:Yes/Yes

Speaker Size Control:Yes

Inputs and Outputs

Video Out:x 1 (V:RCA)

Rear view camera Input:Yes

Line Output Terminals:2Preouts + Sub WF (Mono)

Pre-output Level/Impedance:2.5V / 10k ohms

Subwoofer Output with Level/Frequency Control:Yes (Normal / Reverse)

General

iDatalink Maestro Ready:Yes

Short Chassis:Yes

Wireless Remote Control Type:Optional (RM-RK259 required)

Steering Remote Control Ready:Yes

Learning Direct OEM Remote:Yes

Dimensions (W x H x D) / Weight

Installation Size:178 x 100 x 85.7 (mm)

Weight:1.03kg (Including Trim plate)

Unit weight in individual package:1.53kg

More Information

More Information
Functions	Bluetooth, Apple Carplay, Android Auto, 2 DIN Size

Speakers

Amplifiers
