SRPM700.4D – 4-Channel 700W Stroker Marine Digital Amplifier – Black

Features

• Class-D Full Range 2-Ohm Stable 4-Channel Amplifier
• RMS Power Rating:
  • 4 ohms: 100 watts x 4 chan.
  • 2 ohms: 150 watts x 4 chan.
  • Bridged, 4 ohms: 300 watts x 1 chan.
• Total power output: 700 watts
• Conformal coated PCB to protect against dust, vibration, and moisture
• Top-mounted controls allow for fast, accurate adjustments
• Pulse Width Modulated MOSFET power supply
• LED power (green) and protect (red) indicators
• Soft start turn-on

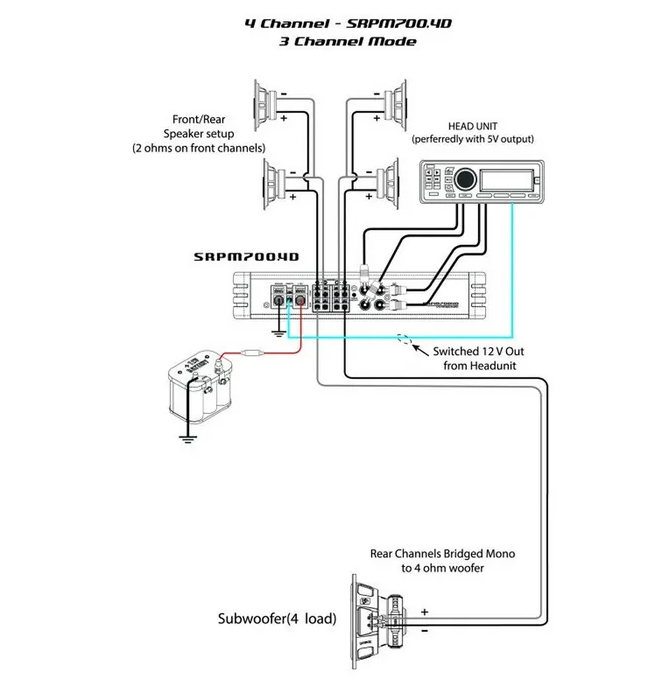

• 4/3/2 channel operation
• Crossover, 40 – 400 Hz, 12dB slope
• Speaker-level (high-level) inputs
• Preamp RCA outputs to daisy chain multiple amps
• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy-duty aluminum alloy heat-sink
• Input sensitivity:
  • Low level: 0.2mV-10.0V
  • High level: Up to 25W RMS
• Frequency Response: 10 – 33,000 Hz
• Total Harmonic Distortion (THD): 0.07%
• Signal to Noise Ratio: -77.4dBA
• Variable high-pass filter: 40 – 400 Hz, 24 dB/octave
• Variable low-pass filter: 40 – 400 Hz, 24 dB/octave

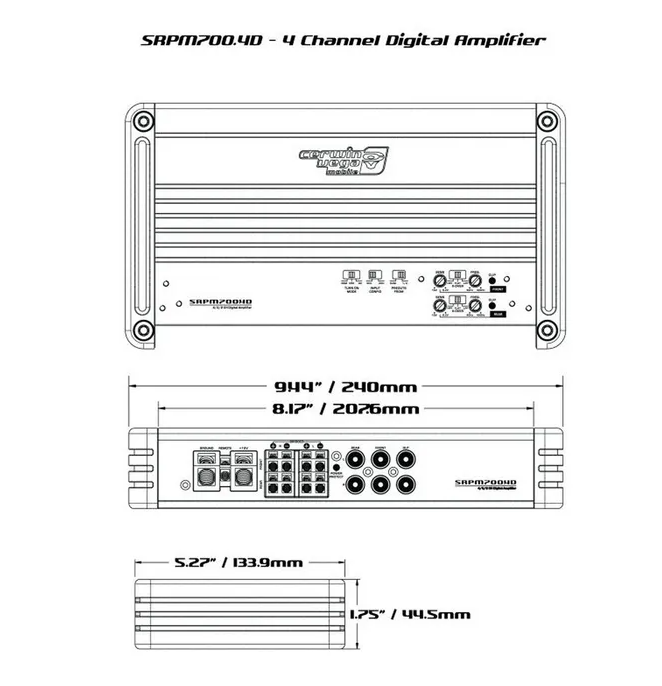

• Dimensions: 5.27″W x 9.44″L x 1.75″H
