Sound Dynamics Design with 3D Shaped Grill

Based on the drvn Series, the drvn XX Series is designed to be even more aggressive and tough-looking. Semi-open grilles have a speaker box effect, diffusing warm, ambient sound across the vehicle.

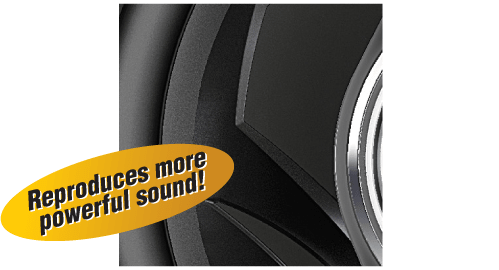

Aramid Carbon Mica 3D Cone Woofer

Aramid carbon mica 3D cone woofer provides increased strength with less distortion, precise amplitude, and speedy response.

Rubber Surround

Durable and quick-responding rubber surround supports high-power audio input, with undistorted bass.

Enhanced Mid-Range Sound

Larger cones deliver lively mid- and high-range sound as well as clear vocals, resulting in improved overall sound quality.

Woofer

Size

16 cm (6-1/2'')

Type

4-Way Coaxial

Diaphragm

Carbon Mica 3D Cone

Surround

Single Roll Rubber Surround

Magnet

Ferrite Magnet

Midrange

Size

5.2 cm (2-1/16'')

Diaphragm

Poly-Ether Imide Cone

Magnet

Ferrite Magnet

Tweeter

Size

1.5 cm (19/32'')

Diaphragm

Poly-Ether Imide Dome

Super Tweeter 1

Size

1.2 cm (1/2'')

Diaphragm

Poly-Ether Imide Dome

General

Power Handling Capacity (Peak Power)

350W

Power Handling Capacity (RMS)

50W

Impedance

4 ohms

Sound Pressure Level

89dB/W.m

Frequency Response

40 - 25,000Hz

Weight

1.12kg (2.5 lbs)

Magnet Mass

445g (15.7 oz)

Mounting Depth

57 mm (2-1/4'')
