JVC KD-X560BT Digital Media Receiver featuring Bluetooth / USB / 3" Color Display / Conformal Coated PCB / Camrea-Input / 13-Band EQ
Check for Availability with us

Details

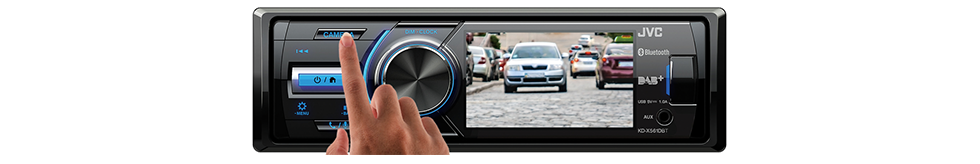

Rear View Camera Input
Linked with a back gear, the display automatically switches to the view from the rear camera.
Independent “CAMERA” Key
With an optional rear camera connected, you can check the backward situation any time by just pressing the "CAMERA" key.

Bluetooth AVRCP1.5 for Versatile Song Selection
In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.

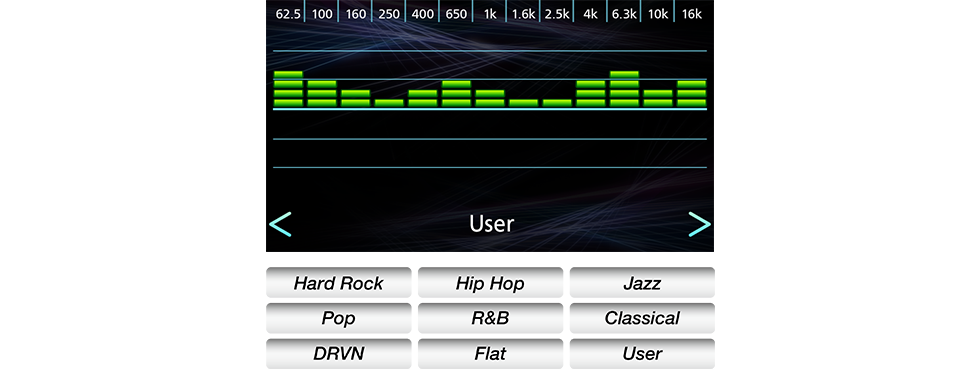

9-Preset EQ and 13-Band Graphic EQ
With 9-Preset EQ patterns to choose from, it's easy to create the sound you like, based on musical genre or your personal preference. What's more, with 13-band Graphic EQ you can set the levels of Bass, Mid and High individually to finely adjust the sound and further optimize your listening environment.

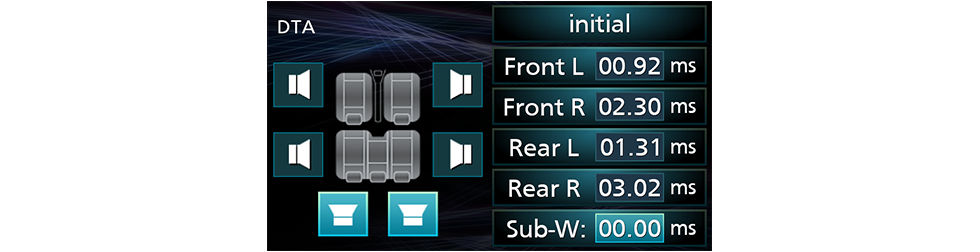

Time Alignment
By setting the time delay on each speaker, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

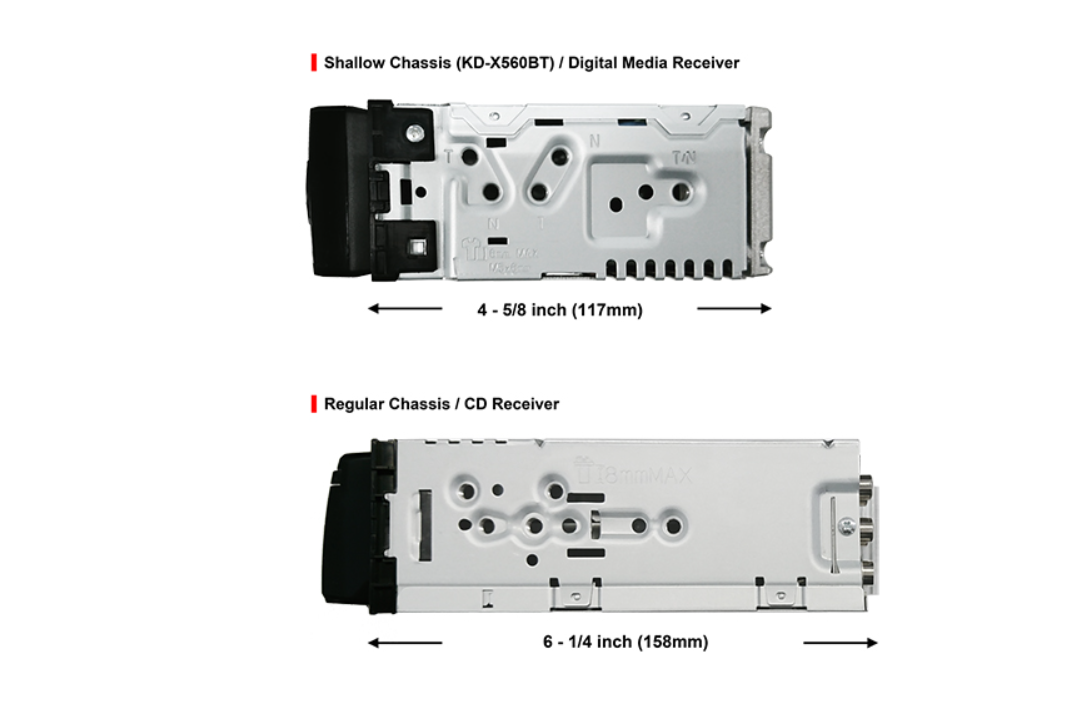

Shallow Chassis
The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.
KD-X560BT
| Screen Size | 3.0" 16:9 QVGA |
| Key Illumination Color | Blue |
| Dimmer | Yes (1/2/Off) |
| Multilingual Display | Yes[2] |
| MP3 Compatible with Tag | Yes |
| Built-in Bluetooth[1] | Yes |
| Hands Free Call | Yes |
| Audio Streaming & Control (A2DP, AVRCP) | Yes |
| Android Music Playback | Yes (via Bluetooth(R)) |
| iPod/iPhone Music Playback | Yes (via USB or Bluetooth(R)) |
| USB Port | x 1 (High speed) |
| Position | Front |
| USB Power Supply | Yes (1.0A) |
| Radio Broadcast Data System (RBDS) | Yes |
| Maximum Power Output (Front & Rear) | 45W x 4 |
| Full Bandwidth Power (Front & Rear) | 16W x 4 |
| Bass Boost | Yes |
| Front AUX Input | Yes |
| Rear view camera Input | Yes |
| Installation Size | 7-3/16" x 2-1/16" x 4-5/8" (182 x 52 x 117 mm) |
| Weight | 1.65 lbs. (0.75kg) |
| Unit weight in individual package | 2.45 lbs. (1.11kg) |
More Information
| Functions | Bluetooth, 1 DIN Size |
|---|
