JVC KW-M785BW Wireless Apple Carplay / Android Auto / Bluetooth / USB

In stock

SKU

JVC KW-M785BW

Special Price $799.00 Regular Price $1,099.00

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Monitor with ReceiverKW-M785BW

Digital Media Receiver featuring 6.8-inch Capacitive Touch Control Monitor (6.8" WVGA) / Wireless Apple CarPlay / Wireless Android Auto / USB Mirroring for Android Phones / HDMI Input / Bluetooth® / 13-Band EQ / Short Chassis

Apple CarPlay – Connect Wirelessly or via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch. Some features, applications, and services are not

Android Auto™ – Connect Wirelessly or via USB

Android Auto is a simpler, safer way to use your phone in the car. Just plug in your phone – or in select models, connect wirelessly – and youʼll access your favorite music, media, and messaging apps in the car. Check out all the Apps for Android Auto at g.co/androidauto

*To use Android Auto on your car display, youʼll need an Android phone running Android 6 or higher, an active data plan, and the Android Auto app.
*To wirelessly use Android Auto on your car display, you need a compatible Android smartphone with an active data plan.

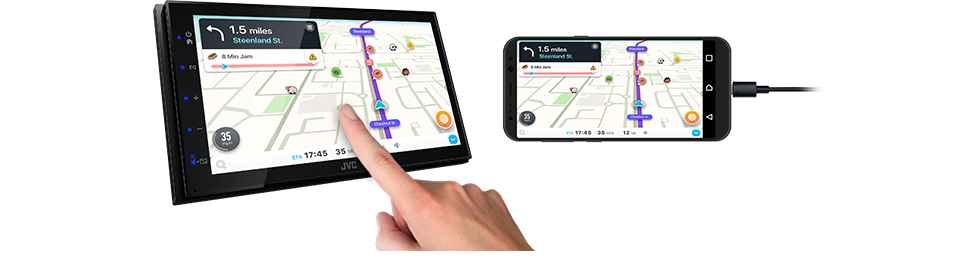

Mirroring for Android Phone – Connect via USB

By installing the “Mirroring OA for JVC” app, your Android phone is seamlessly displayed on the receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.

Gesture Touch Control

Just touch and move your finger over the screen for various operations corresponding to your finger movements. Intuitive control provides safer operation for in-car entertainment.

Time Alignment

By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

Sound Response

Cancels time distortion to create clearer sound during the playback of compressed audio files.

Space Enhancement

Space Enhancement is a virtual surround technology using 2 speakers. Just select the vehicle size, and the receiver automatically adjusts the sound effectively.

Sound Lift

Virtually manipulate the height of the speakers by adjusting the sound frequencies.

Volume Link EQ

Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.

13-Band Equalizer

Use the 13-Band Equalizer to manually adjust the sound to your taste.

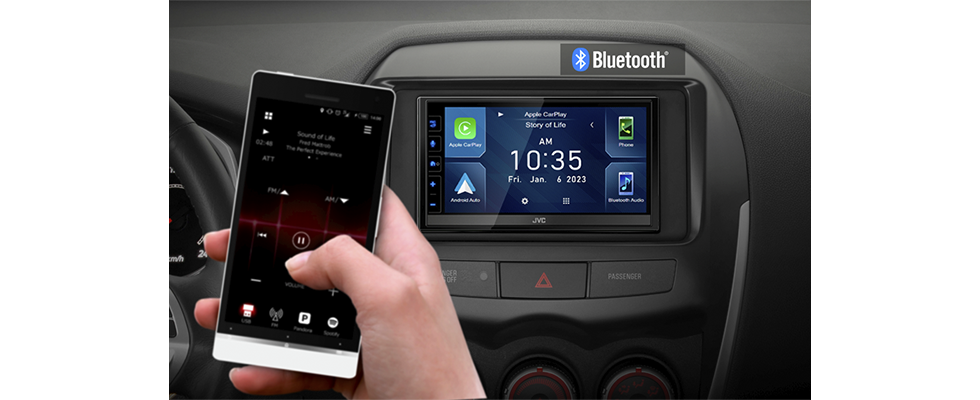

2 Phones Full-Time Connection

You can connect two phones full time via Bluetooth, with secure and simple pairing. Calls to either phone can be received by a push of a key on the receiver.

iPhone/Android™ Bluetooth Automatic Pairing

Just connect your iPhone or Android device via USB and the automatic Bluetooth pairing function will work to complete the pairing. No complicated manual procedure to worry about.

Streaming Music

Listen to popular music applications and music stored on your device with basic audio controls.

Bluetooth Voice Recognition

Improved Sound Quality with HFP 1.8 Wideband Speech

Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.

Bluetooth AVRCP1.6 for Versatile Song Selection

In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists

JVC Streaming DJ

Connect up to 5 Bluetooth devices simultaneously, so you and your friends can take turns streaming music like a DJ. Move to the groove and get the party pumping to the max.

High Current 1.5A Charging

Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A.
*Compatibility depends on the smartphone.

Short Chassis

The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

KW-M785BW

Monitor

Screen Size:6.8"W VGA Screen

Touch Panel:Capacitive

Gesture Touch Control:Yes

Key Illumination Color:Variable

Dimmer:Yes

Multilingual Display:Yes

Wallpaper Capture:Yes

Media Playback

MP3 Compatible with Tag:USB

WMA Compatible with Tag:USB

WAV Compatible with Tag:USB

AAC Compatible with Tag:USB

FLAC Compatible with Tag:USB

H.264 Compatible:USB

WMV Compatible:USB

MPEG 1/2 Compatible:USB

MPEG 4 Compatible:USB

MKV Compatible:USB

Bluetooth Control

Built-in Bluetooth[1]:Yes (Wired-Mic included)

Hands Free Call:Yes (HFP1.8 Wideband Speech)

2 Phones Full-Time Connection:Yes

Audio Streaming & Control (A2DP, AVRCP):Yes

Supported Audio Formats:AAC / SBC

5 BT-Audio Connection:Yes

Voice Dialing (voice recognition compatible mobile phone required):Yes

Phone Book Access Profile (PBAP):Yes

Alphabetical Search for Phone Book:Yes

Auto Pairing for iPhone/Android:Yes

Wi-Fi Control

Built-in Wi-Fi:Yes

Android Control

Android Auto[2]:Yes (via Wi-Fi or USB)

Mirroring for Android:Yes (via USB) *Need mirroring App

Android Music Playback:Yes (via Bluetooth(R))

iPod/iPhone Control

CarPlay[3]:Yes (via Wi-Fi or USB)

iPhone Music Playback:Yes (via USB(CarPlay) or Bluetooth(AVRCP))

USB

USB Port:x 1 (High speed)

Position:Rear

USB Power Supply:Yes (1.5A High Current Charging)

Drive Change Mode for Mass Storage Class (selectable from internal/external memory):Yes

Radio Tuner

Preset Stations:20(FM:15ch, AM:5ch)

FM Frequency Range:87.5 - 108.0MHz

AM Frequency Response:(MW) 531 - 1,611kHz (9kHz)

Audio

Maximum Power Output (Front & Rear): 50Wx4

Full Bandwidth Power (Front & Rear): 22W x 4 (Full Bandwidth Power, at less than 1% THD)

EQ:Yes (13-Band Graphic EQ)

Preset EQ:Yes (8Preset + 4user)

Bass Boost:Yes

High-Pass Filter/Low-Pass Filter:Yes/Yes

3-Way X'over:Yes

Digital Track Expander:Yes

Space Enhancement:Yes

Sound Response:Yes

Sound Lift:Yes

Volume Link EQ:Yes

Time Alignment:Yes

Inputs and Outputs

AV Input:mini jack (AV-IN or Camera-IN switchable) x 1

Video Out:RCA x 1

HDMI Terminal:Yes

Rear view camera Input:Yes

Line Output Terminals:3 Pairs (Front + Rear + Subwoofer)

Pre-output Level/Impedance:2.5V / 10k ohms

General

Back Up Memory:Yes

Face Type

Viewing Angle Adjustment:Yes (0 - 20 degree, default : 0 degree)

Short Chassis:Yes (75mm)

Wireless Remote Control Type:Ready (RM-RK258 required)

Steering Remote Control Ready:Yes

Learning Direct OEM Remote:Yes

Dimensions (W x H x D)

Installation Size:180 x 100 x 75 (mm)

Weight:1.0kg : including trim plate

Unit weight in individual package:1.8kg
