• ・10.1" High Definition Monitor with Capacitive Touch Panel
• ・Floating Panel Mechanism with 3-way Position Adjustment
• ・Wired & Wireless Apple CarPlay™
• ・Wired Android Auto™
• ・High-Resolution Audio Wireless
• ・Wireless Mirroring for Android
• ・Built-in DAB+ Digital Radio Tuner and Built-in Bluetooth
• ・4 Camera Inputs
• ・HD Front/Rear Camera Ready
• ・3 Preouts 5V

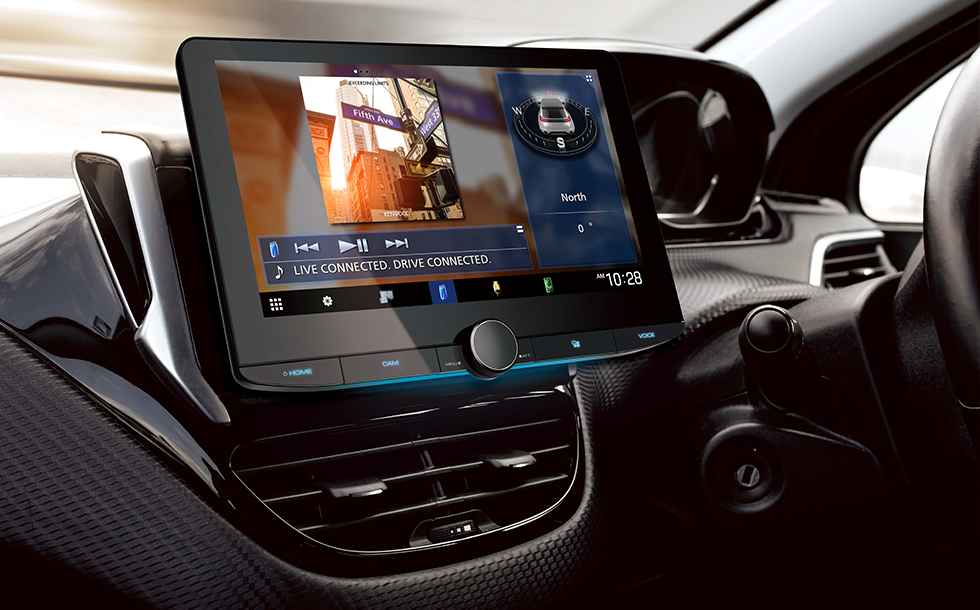

INTRODUCING A REVOLUTIONARY 10.1 INCH HD DISPLAY

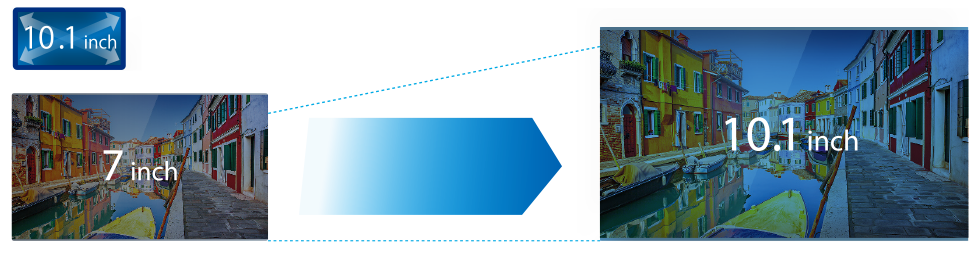

Large 10.1 inch HD display

Provides room for more information that is large and easy to see with just a glance.

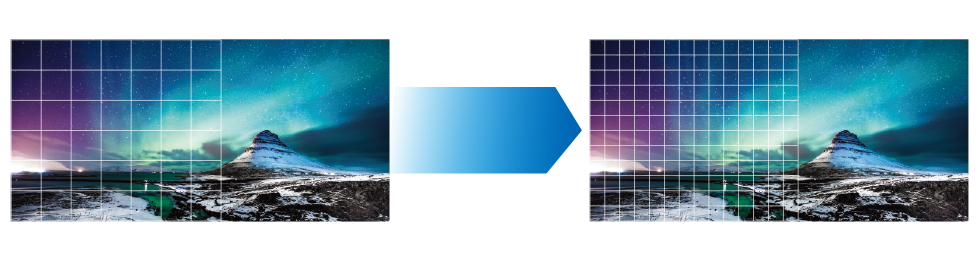

High Definition
— Overwhelming Power of Expression —

10.1" Display features an electrostatic capacitive touch panel and HD 1280 x 720 pixel LCD panel with high luminance white LED backlight and superior wide viewing angles.

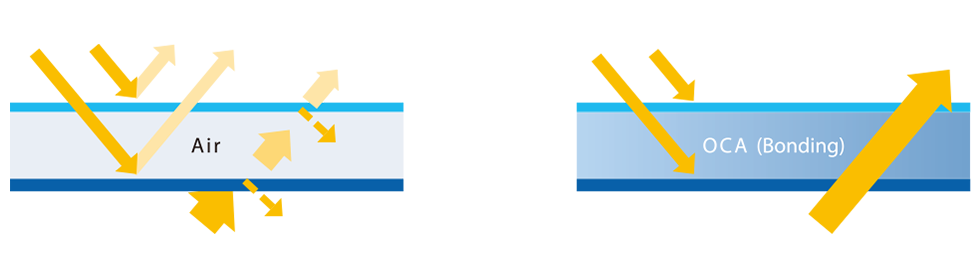

BONDED OPTICAL DISPLAY
— VIVID COLORS WITH HIGH CONTRAST —

Optical Clear Adhesive (OCA) is added between the touch screen and the LCD to eliminate the air layer and suppress light reflection and glare. This feature enhances the contrast and brightness and maintains the visibility of the display in various environments.

WIDER VIEWING ANGLE
— BEAUTIFUL FROM ANY SEAT —

The AAS display technology of the LCD panel assures you a wider viewing angle of 170° for both horizontal and vertical directions. Together with

the protective film which minimizes reflection and glare from sunlight, you can enjoy clear images even from the passenger or back seats.

\

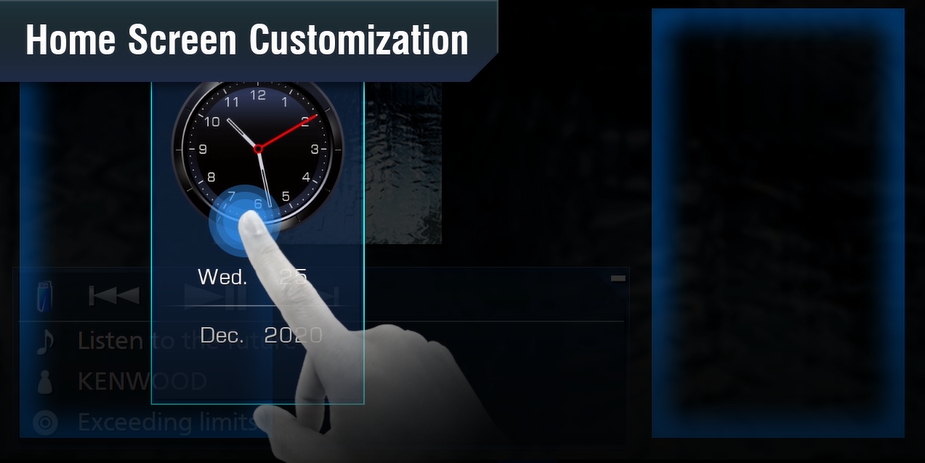

DRIVING WIDGET HOME SCREEN

The 10.1" home screen is composed of a Driving Widget as well as a Source Control Widget overlaid on the background. You can move the Driving Widget from side to side or enlarge the Source Control Widget to optimize the screen for your intuitive operation. The Driving Widget allows selection of a clock, compass, or equalizer setting, etc., while the background allows selection of album art, audio visualizer, or photo.

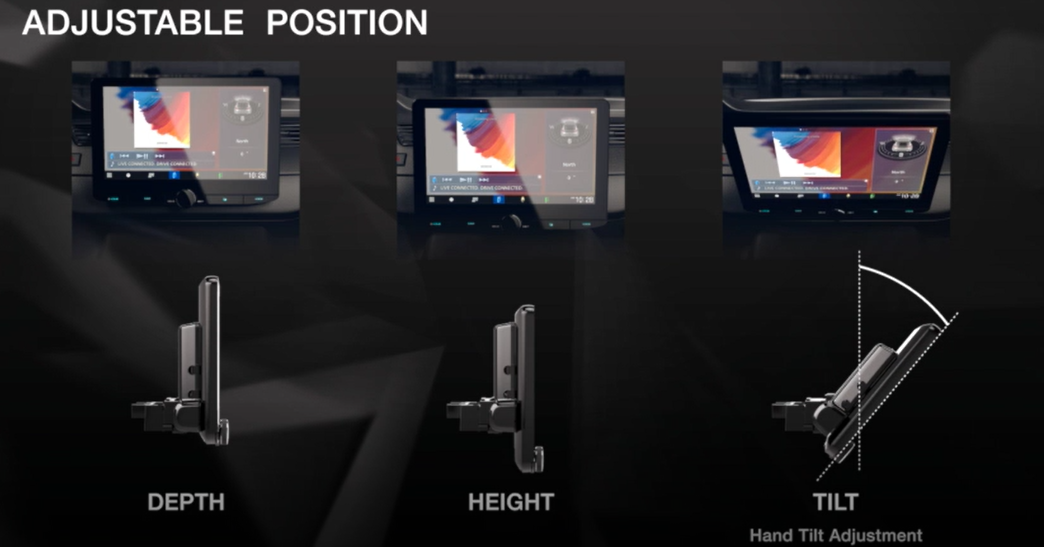

FLOATING PANEL MECHANISM WITH
3-WAY POSITION ADJUSTMENT

Fully adjustable display allows you to change the depth, height and angle for easy vehicle fitment.
Forward / Backward 20mm
Up / Down 39mm
Tilt: -10°/ +45°

Smartphone Connectivity

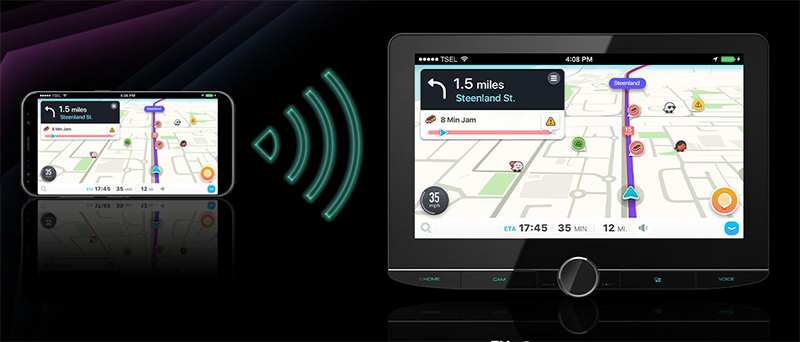

Safe, Smart and Comprehensive Control with Apple CarPlay™

Apple CarPlay™ is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming service like Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps and Waze are also supported.
New KENWOOD Wi-Fi receivers now support Apple CarPlay™ wirelessly (compatible phone required).

Android Auto for Easy Connectivity

Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Spotify. Navigate to where you need to with Google Maps or Waze.
(compatible phone required).

Wireless Mirroring for Android

Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.

HDMI Input

Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the 10.1" monitor.

Equipped with the Intuitive KENWOOD Music Mix

Up to 5 Bluetooth^® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.

Dual Phone Connection

While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment

Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

Rear View Camera Input with Parking Guide Lines

An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

4 Camera Inputs

To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a rear camera, side (blind spot) cameras, and a KENWOOD dashboard camera (DRV-N520 sold separately).  Alternatively, 4 camera inputs can support several other configurations, including the connection of 2 side cameras, a front HD camera, and a rear HD camera (CMOS-740HD sold separately). Camera switching is available using on screen controls, or automatically for side cameras when an optional iDatalink Maestro RR is connected (supported vehicles only).
